Clojure Plotting to Org inline image in ob-clojure

1 The Process of my Clojure Plotting

1.1 ask whether Clojure/JVM can change working directory

I did some hard search, found some links

Then I found JVM does not allow to change working directory because of security reason https://bugs.java.com/bugdatabase/view_bug.do?bug_id=4045688.

So, there is no reliable way to do this in pure Java. Setting the user.dir property via System.setProperty() or java -Duser.dir=... does seem to affect subsequent creations of Files, but not e.g. FileOutputStreams.

1.2 I create Org-mode library "ob-clojure-literate" and improve Org Babel "ob-core.el" for plotting support

Because changing Clojure/JVM working directory is not available, so I find method on Emacs side, Org-mode other Babel lanaguages like R, Python have good image file result support. So I dive into source code, and try to add similar function to "ob-clojure". But I found some limites, then I created "ob-clojure-literate (GitHub repo)" (Now it is in Org-mode contrib lib).

1.3 use more better solution by passing target path into Clojure with header argument :var

You can fake change Clojure REPL working directory by passing header argument variable into Clojure code. Like this:

#+begin_src clojure :results value :var dir=(concat (file-name-directory (buffer-file-name)) "data/images/")
(str dir "ob-clojure-literate.png")
#+end_src

#+RESULTS[<2018-05-17 01:12:55> 73be0ca9a40a4f1e4fdee8e535991955f77b034a]:
: "/home/stardiviner/Org/Wiki/Computer Technology/Programming/Emacs/Data/Emacs Packages/Org mode/data/images/ob-clojure-literate.png"

Then you can use Clojure funciton to save graphics object to target file with correct absolute path:

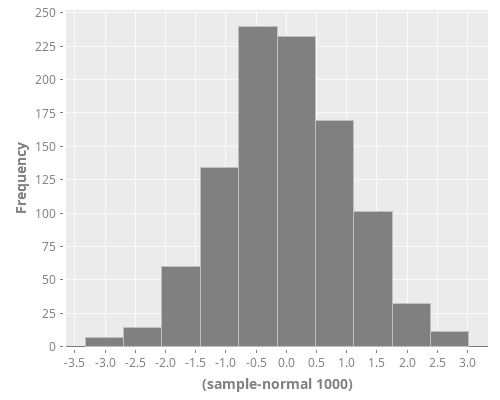

#+begin_src clojure :results graphics :dir "data/images" :file "ob-clojure-literate.png" :var dir=(concat (file-name-directory (buffer-file-name)) "data/images/")
(use '(incanter core stats datasets charts io pdf))
(def hist (histogram (sample-normal 1000)))
(save hist (str dir "ob-clojure-literate.png"))
#+end_src
(use '(incanter core stats datasets charts io pdf))
(def hist (histogram (sample-normal 1000)))
(save hist (str dir "ob-clojure-literate.png"))

1.4 use final solution by move image file to target path with Clojure function

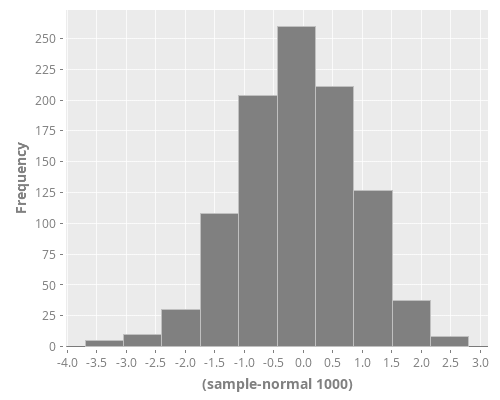

#+begin_src clojure :results graphics :dir "data/images" :file "ob-clojure-incanter-move.png" :var dir=(concat (file-name-directory (buffer-file-name)) "data/images/")
(use '(incanter core stats datasets charts io pdf))
(import '(java.io File))

(def hist (histogram (sample-normal 1000)))
(save hist "ob-clojure-incanter-move.png")
(.renameTo (File. "ob-clojure-incanter-move.png") (File. (str dir "ob-clojure-incanter-move.png")))
#+end_src
(use '(incanter core stats datasets charts io pdf))
(import '(java.io File))

(def hist (histogram (sample-normal 1000)))
(save hist "ob-clojure-incanter-move.png")
(.renameTo (File. "ob-clojure-incanter-move.png") (File. (str dir "ob-clojure-incanter-move.png")))

2 Incanter

#+begin_src clojure :results graphics :dir "data/images" :file "ob-clojure-literate.png" :var dir=(concat (file-name-directory (buffer-file-name)) "data/images/")
(use '(incanter core stats datasets charts io pdf))
(def hist (histogram (sample-normal 1000)))
(save hist (str dir "ob-clojure-literate.png"))
#+end_src
(use '(incanter core stats datasets charts io pdf))
(def hist (histogram (sample-normal 1000)))
(save hist (str dir "ob-clojure-literate.png"))

3 clj-xchart

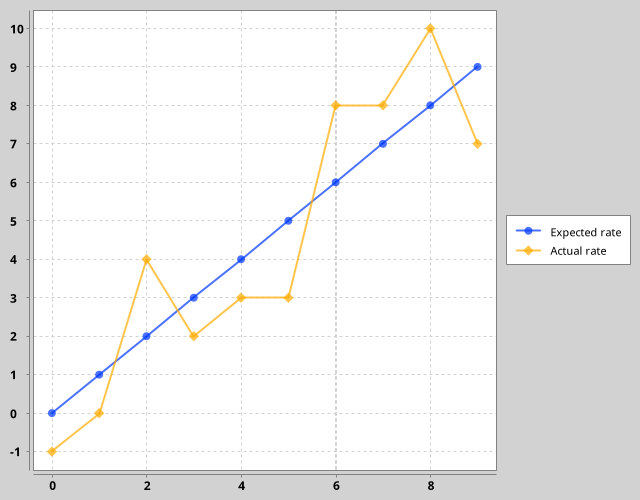

#+begin_src clojure :results graphics :dir "data/images" :file "ob-clojure-clj-xchart.png" :var dir=(concat (file-name-directory (buffer-file-name)) "data/images/")
(require '[com.hypirion.clj-xchart :as xchart])

(def ob-clojure-clj-xchart
  (xchart/xy-chart {"Expected rate" [(range 10) (range 10)]
                    "Actual rate"   [(range 10) (map #(+ % (rand-int 5) -2) (range 10))]}))

;; (xchart/view ob-clojure-clj-xchart)
(xchart/spit ob-clojure-clj-xchart (str dir "ob-clojure-clj-xchart.png"))
#+end_src
(require '[com.hypirion.clj-xchart :as xchart])

(def ob-clojure-clj-xchart
  (xchart/xy-chart {"Expected rate" [(range 10) (range 10)]
                    "Actual rate"   [(range 10) (map #(+ % (rand-int 5) -2) (range 10))]}))

;; (xchart/view ob-clojure-clj-xchart)
(xchart/spit ob-clojure-clj-xchart (str dir "ob-clojure-clj-xchart.png"))

4 ggplot2

5 jutsu

6 References

I also posted this method on Org Mode Worg documentations: https://orgmode.org/worg/org-contrib/babel/languages/ob-doc-clojure.html

7 Make use of CIDER new support of image content-type

Since the PR https://github.com/clojure-emacs/cider-nrepl/pull/517 got merged into CIDER. It is realsed in CIDER 0.17 (Andalucía).

CIDER in Emacs can handle various image content-types now and render image in the REPL.

I'm considering how to integrate this feature into ob-clojure.el to save image content-type as file.

8 Literaral Org-mode version

If you want to see Literal Org-mode version of this post, click the "Show Org Source" button!
